Extreme® 300 Series High Performance Grille

Contact us about this product

HIGH PERFORMANCE ROLLING GRILLE

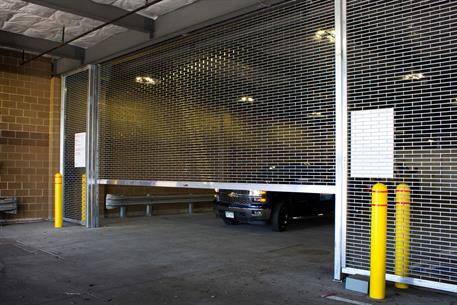

For building owners and maintenance managers tired of repairing or replacing commercial doors or security grilles, the Extreme® 300 Series High Performance Grille is the answer. Ideal for parking garages, airports and transportation hubs or other high traffic openings, the 300 Series High Performance Rolling Grille operates up to 3 times faster than standard overhead coiling grilles and is engineered for 300,000 open and close cycles. If you need a high speed grille, the 300 high performance grille has fast opening speeds of up to 24" per second and closing at 12" per second, which maximizes productivity, smooths traffic flow and reduces downtime in high traffic applications.

To ensure maximum uptime, the 300 Series Grille requires practically no maintenance other than routine checks and no replacement parts. The commercial grille’s compact operator features a variable-frequency drive that ensures a smooth start and stop – reducing wear and tear on both the overhead grille and the operator. In addition, the operator’s direct drive design means there’s no sprocket and chain to wear or replace. It accepts virtually all security activation systems and features a 2 year operator warranty and a 2 year/300,000 cycle component warranty.

Our Apex SmartController intelligent control panel featuring plug and play wiring makes installing and servicing the 300 Series Security Grille easier than ever before. The LCD screen communicates safety grille status messages, provides easy-to-follow instructions for roll up grille commissioning, and electronically sets door limits. When the security grille limits are set, they are continuously monitored and adjusted.

When you need fast speeds, maintenance free solutions and easy to install and use security that still provides visibility and air flow, the 300 Series High Performance Grille is the only security answer you need.

 Our Extreme® 300 Series High Performance Grille:

  • Opens 3 times faster than a standard rolling grille
  • Has a sustainable and durable design rated for continuous duty
  • Features a 2 year warranty on the operator and a 2 year/300K cycle warranty on the additional components
  • Complies to the UL 325 standards for occupant safety
  • Accepts virtually all activation systems

Sizes

Our 300 High Performance Grilles come in the following standard height and width parameters:

If your maximum height is less than or equal to…

…your maximum width available is:

12’

30’

16’

28’

For openings that fall outside of the standard construction, please contact us

Standard Materials and Finishes

The 300 Series Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

  • Brick Pattern
  • Straight Pattern

Curtains can come in the following finishes:

  • Mill
  • Clear anodized
  • Medium bronze anodized
  • Dark bronze anodized
  • Black duranodic

Aesthetics

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Powder Coating Grilles

Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.

Learn More

Performance Upgrades

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Safety and Protection

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

Locking

A wide variety of locking options are available to meet your security needs.

Learn More

Monitored Protection, Even at High Speeds

UL 325-2010 (NEMA 4X) compliant photo eye sensors allow for momentary contact operation – useful in parking garages and other high use openings. Interruption of the photo eye beam before the door fully closes causes the door to immediately halt downward travel and reverse direction to return to the fully open position.

SafetyGard Light Curtain Technology

The 6’ tall light curtain is installed within the guide and blends into the guide construction. If the grille is cycling and an object passes through the curtain beams the door will immediately halt downward travel and reverse direction to return to the open position.

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Specification Sheets

BIM Objects

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.

High Speed/High Cycle Grille Drawing Generator

Codes & Listings

  • ISO 9001:2008
  • Buy America Compliance
  • LEED® Compliance

See Codes and Listings page for detailed information.
