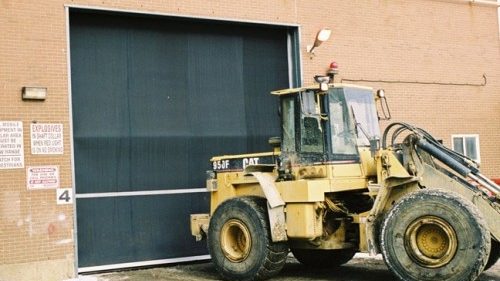

Manufacturing Process and Maintenance Buildings in: mining, petroleum, military, agriculture, pulp & paper, and steel.


  • Suitable for applications up to 20 feet in width or height
  • Self-supporting steel mounting angle
  • Knock-away double angle steel bottom bar for 10lb/ft with rubber loop
  • Frame mounted thru-beam photoelectric sensor
  • Heavy duty gear operator with push button controls open, close, stop
  • Door speed of up to 18 inches per second
  • Counterbalance spring assembly cycle rating of 100,000


  • 1/4" SBR rubber, polyester core weave remains functional in temperatures -40ºF to +180ºF
  • Limited Lifetime warranty on curtain and NEWGEN Guide System. 2-year warranty on all other parts & workmanship.
  • Patented NEWGEN Guide and Curtain Lok System. After an impact the door is up and running in minutes.
  • Sleek profile, easy installation, reduced clearances & minimal maintenance. No hinges, cables, pulleys or tension springs.
  • Heavy Duty industrial drive system with soft start / soft stop frequency inverter drive (except on manual doors).
  • Self-supporting steel frame, Knock-away bottom bar, thru-beam photoelectric safety sensor.
