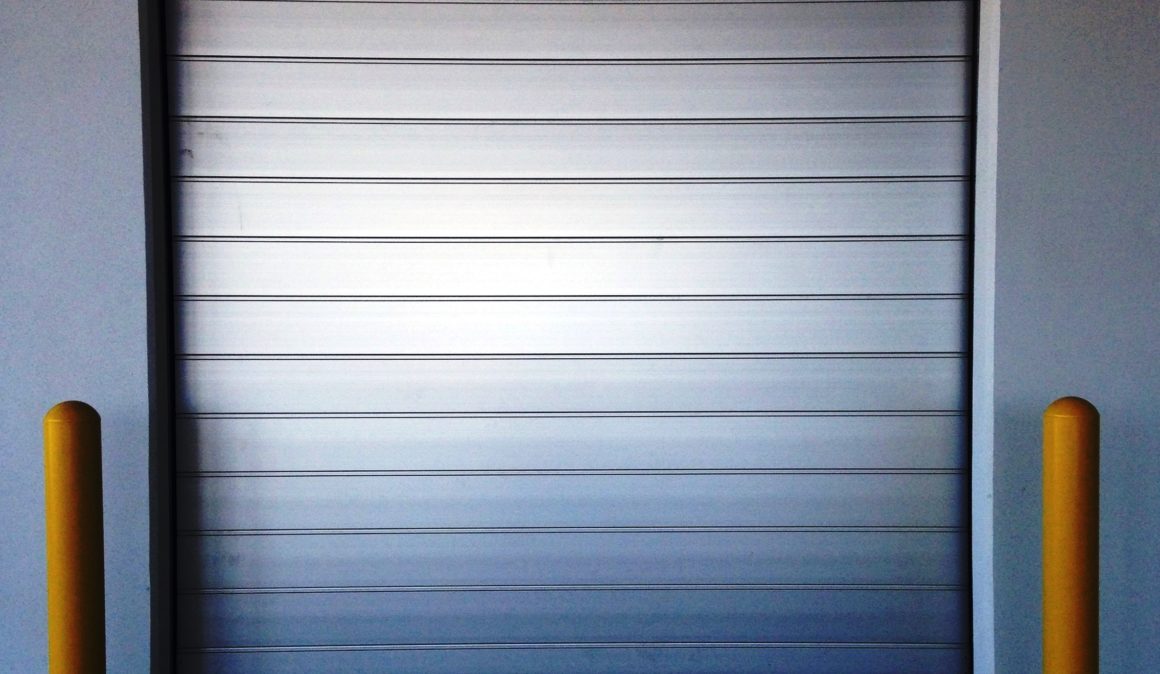

Speed-Guardian™ 4000 H & V Acoustic
Contact us about this product
Acoustic Model With High Lift Track Application 1-5/8" (42 mm) Panel
The H high lift track application makes it possible for the door to be installed behind or above supply lines or crane tracks. The 1-5/8" (42 mm) thick panel is guided in horizontal tracks and can be diverted flexibly depending on the application. Thanks to the belt mechanism with counter weights, the door is especially low-wear and long-lasting.
Acoustic Model With Vertical Lift Track Application 1-5/8" (42 mm) Panel
With the V vertical lift track application, the 1-5/'8" (42 mm) thick door panel runs vertically along the building wall allowing for very quiet and wear-free door movement. The belt mechanism with counter weights guarantees a long service life with constant use.
Acoustic Panel Insulates Sound Up to 31 dB
For special applications that require acoustic insulation for sound-deadening, the Speed-Guardian™ 4000 A high speed door has a 1-5/8" thick panel made of smooth C0 anodized aluminum with aluminum hollow profiles. The hollow profiles are filled with 5 mm PVC and 30 mm PU-foam, providing acoustic insulation up to 31 dB.
NEMA 4X Smart Start™ NXT Control Box - Standard
All 5000 models include our Smart Start™ NXT, NEMA 4X, control box as standard. The updated control box has a simplified wiring configuration and is more powerful with fewer components and cables as compared to the original Smart Start™. A distribution block accepts the activation and protection device wiring; main power cables fee through pre-drilled holes on the bottom of the box where the individual wires, with pre-wired removable terminal blocks, simply plug into the circuit board. There are extra ports on the control board allowing for firmware upgrades and future expansion. A USB port is included for maintenance monitoring.
Built-in Light Grid
The standard light grid is integral with the guide tracks making it less susceptible to damage by passing loads. This system enhances protection of personnel and goods and drastically reduces the likelihood of damage and repair to other parts of the door, saving on maintenance costs.
Application /Size
Interior or Exterior applications:
Up to 16’0" wide x 16'0" high.
Panel
Acoustic models have a 1-5/8" thick door panel made of smooth C0 anodized aluminum with aluminum hollow profiles. The hollow profiles are filled with 5 mm PVC and 30 mm PU-foam, providing acoustic insulation up to 31 dB.
Vision
Vision slats are not available with this model.
Operating Speed
Opening:
Up to 80" per second.
Closing:
20" per second.
Guide Tracks
Standard:
Guide tracks are made of hot-dipped galvanized steel and have a belt mechanism with counter weights which provide a long service life.
Direct-Drive Motor
Compact, self-monitoring direct-drive motor has a patented built-in catch system and is maintenance free.
Control Box
Standard: Smart Start™ NXT NEMA 4X.
Optional: HFCB NEMA 3 Smart Start™ NXT (1-phase, 230 v only).
Safety Devices
Standard: 8’0" high light grid integral with the guide tracks. Emergency opening via hand chain hoist and spring counterbalance.
Comparing R-value and U-value
R-value refers only to the panel's resistance against energy loss. U-value is an internationally recognized measurement tool that provides data about the energy flow lost through the total panel construction including the panel, seals, windows, etc. The 5000's solid sections provide the most efficient U-value available today.
